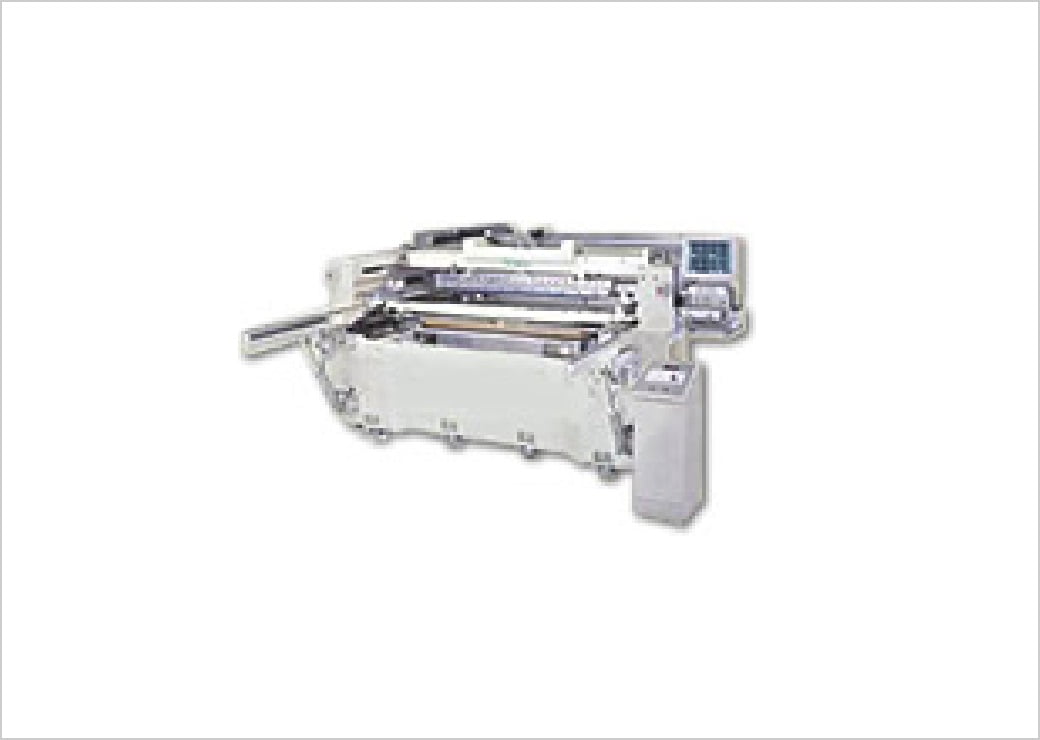

Screen printing lines・Printer for large glass substrates

Features of Printer for large glass substrates


A screen printer that can apply electrodes, dielectrics, barrier rib laminates, and phosphors to 6th generation large glass substrates with high accuracy.
The basement and even the squeegee unit are made of highly rigid castings, enabling high-quality, highly reliable printing. In-line combination with an automatic board transfer system is also possible.

  • Low printing pressure printing by air balance method.
  • Ultra-high rigidity (main structural part-made of iron or aluminum casting).
  • Automatic alignment by image recognition using 4 special cameras.
  • Roll conveyor type substrate supply device and discharge device can be attached.
  • ULVD (ultra-low vibration drive) (PAT.P) squeegee drive.
  • In-line compatible type.
Application example
  • Electronic components
  • Solar cell
  • Touch panel
  • Film device
  • Car parts
  • Fuel cell
  • Semiconductor

Basic specifications of Printer for large glass substrates

Screen size Min. 2,200 x 2,200mm~Max. 2,500 x 2,500mm
Repeated stop accuracy before and after the screen Range within 0.005 mm
Table size 1750mm×1850mm
Table flatness Range within 0.1 mm
Table position repeat accuracy Range within 0.005 mm
Camera movement accuracy ±0.005mm
Mechanical size Approx. W3,550 x L4,420 x H1,750mm (printing machine body)
Mechanical weight Approx. 7000kg
Option Screen cleaning system

Example of large glass substrates printing


We accept various options and modifications
according to the application and budget.
Please feel free to contact us
about screen printing machines.
